PYESYS

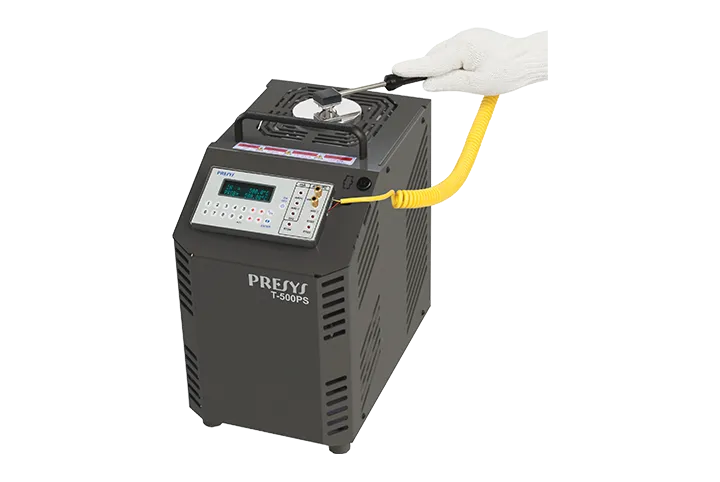

T-500PS

Specially designed for surface sensors calibration such as: RTD, thermocouples and thermistors with maximum metrological reliability.
Its flat aluminum surface ensures high thermal conductivity and perfect phisical contact between the sensor and the measuring area.
80 mm diameter circular surface area.
It has strategically placed heaters under the measurement area to ensure the best temperature stability and uniformity.
Includes entrance to accommodate a reference probe.
Documenting capability: Communication with computer and Isoplan® Software

Technical Specifications	T-500PS
Operating Range ambient temperature: 23 °C	ambient to 500 °C
Accuracy internal reference with external thermometer	± (0.4 °C + 0.1% of reading) ± 0.2 °C
Resolution:	± 0.01 °C
Stability:	± 0.2 °C
Surface Diameter:	80 mm
Heating Time:	30 min (50 °C to 500 °C)
Cooling Time:	30 min (500 °C to 200 °C)
Weight:	9 kg
Power Supply:	110 or 220 Vac, 50/60Hz
Electric Power:	1000 W
Units / Temperature Scales:	°C or °F / IPTS-68 or ITS-90 user selectable
Display:	Graphic vacuum fluorescent with contrast adjustment
Dimensions: (HxWxD)	250 x 180 x 270 mm
Warranty:	1 year
