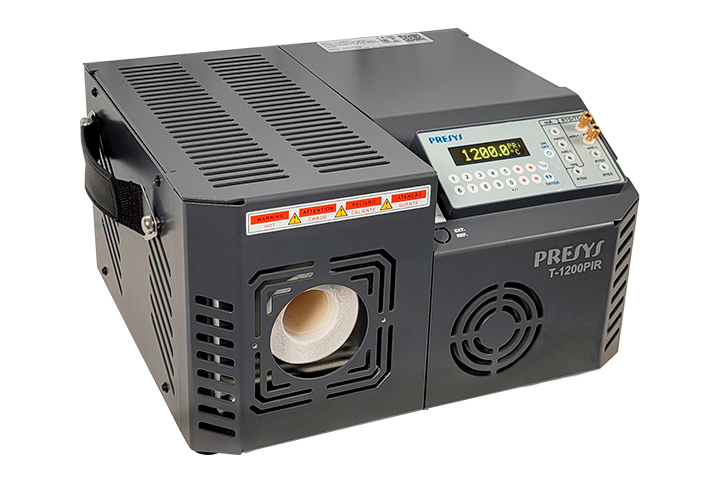

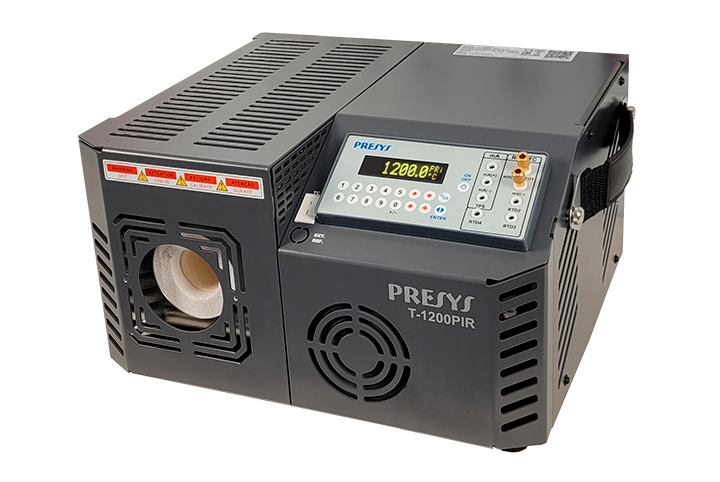

T-1200PIR

T-1200PIR

PRESYS

T-1200PIR

Key Features

Generates temperatures from 50 °C to 1200 °C.
Includes a N type thermocouple for cavity reference temperature.
Target of 20 millimeters.
High accuracy: 0.75 °C with external sensor.
Excellent temperature uniformity on the whole target surface.
Emissivity of 0.99 for a wave-length from 1 µm to 14 µm.
Temperature stability: 0.2 °C.
Configurable readings in °C or °F.
Sakuma-Hattori Emissivity compensation.
Bluetooth Interface.

Download Product User Sheet Watch Video

สั่งซื้อ / สอบถาม

LINE : @thermology โทร. : 092-278-5750 (K’Gun)

Technical Specification

Technical Specification	T-1200PIR
Operating Range ambient temperature: 23 °C	50 °C to 1200 °C
Display Accuracy internal reference with external thermometer	± 2.2 °C ± 0.75 °C
Resolution:	± 0.1 °C
Stability:	± 0.2 °C
Target Size:	20 mm
Target Emissivity (ε):	0.99
Heating Time:	45 min (100 °C to 1200 °C)
Weight:	10.4 kg
Power Supply:	115 Vac or 230 Vac 50/60Hz
Units / Temperature Scales:	°C or °F / IPTS-68 or ITS-90, user selectable
Display:	Graphic vacuum fluorescent with contrast adjustment
Dimensions: (HxWxD)	215 x 390 x 310 mm

Electrical Input Specifications

Input Ranges		Resolution	Accuracy
milivolt	-150 to 150 mV	0.001 mV	± 0.01 % FS
milivolt	150 to 2450 mV	0.01 mV	± 0.02 % FS
TC-N	-20 to 1300 °C	0.1 °C	± 0.2 °C
