PRESYS

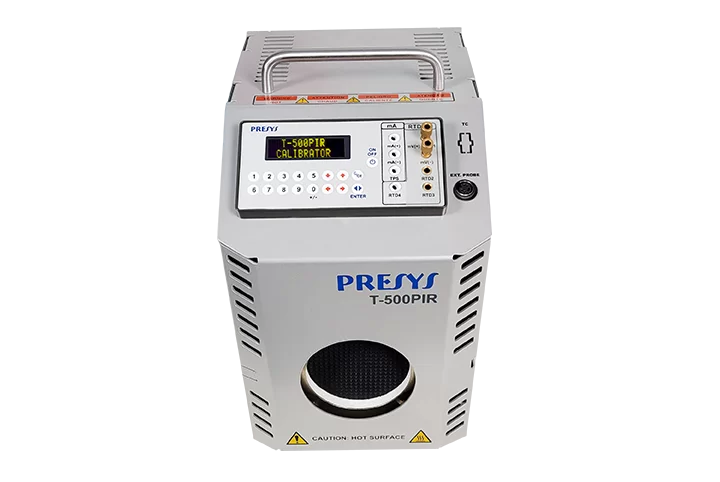

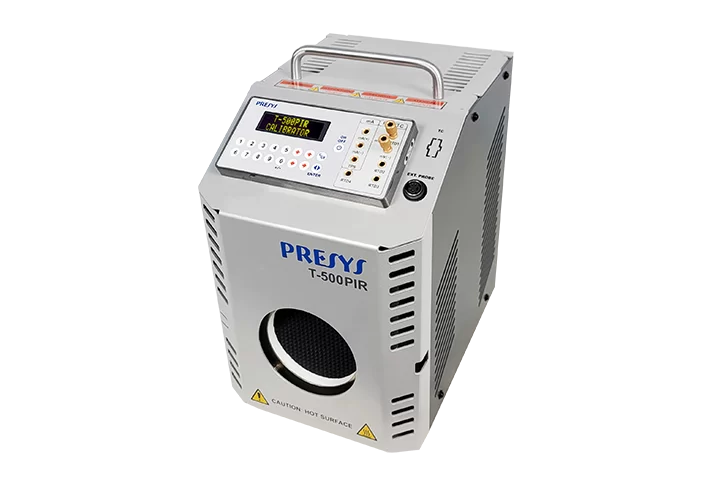

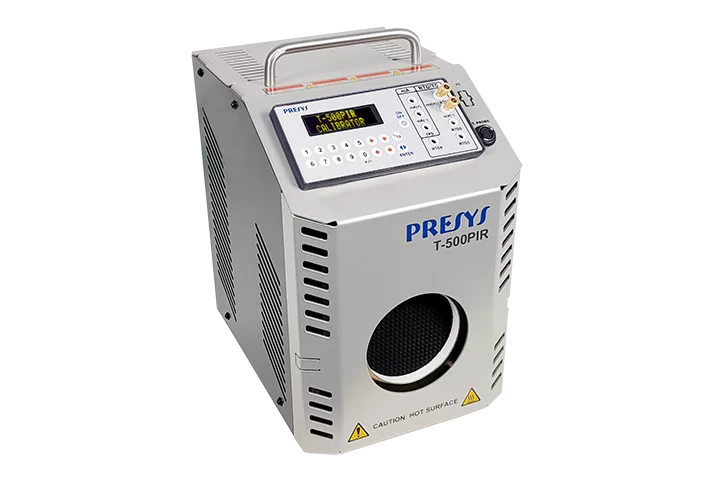

T-500PIR

Generates temperatures from ambient to 500 °C.
Large target of 80 millimeters.
Ideal for the test and calibration of most infrared thermometers available in the industry.
High Accuracy: 0.4 °C + 0.1 % of reading – with internal sensor and 0.2 °C with external sensor.
Excellent temperature uniformity on the whole target surface.
Emissivity of 0.95 ± 0.01 for a wave-length from 8 µm to 14 µm.
Quickly reach the selected temperatures.
Temperature stability: 0.2 °C.
Configurable readings in °C or °F.
Sakuma-Hattori Emissivity compensation.
Bluetooth Interface.

Technical Specification	T-500PIR
Operating Range ambient temperature: 23 °C	ambient to 500 °C
Accuracy internal reference with external thermometer	± (0.4 °C + 0.1% of reading) ± 0.2 °C
Resolution:	± 0.01 °C
Stability:	± 0.2 °C
Target Size:	80 mm
Target Emissivity (ε):	0.95 ± 0.01
Heating Time:	30 min (50 °C to 500 °C)
Target Uniformity:	± 0.50 °C
Cooling Time:	30 min (500 °C to 100 °C)
Weight:	5.2 kg
Power Supply:	110 or 220 Vac, 50/60Hz
Electric Power:	1000 W
Units / temperature Scales:	°C or °F / IPTS-68 or ITS-90, user selectable
Display:	Graphic vacuum fluorescent with contrast adjustment
Dimensions: (HxWxD)	260 x 180 x 270 mm
