PRESYS

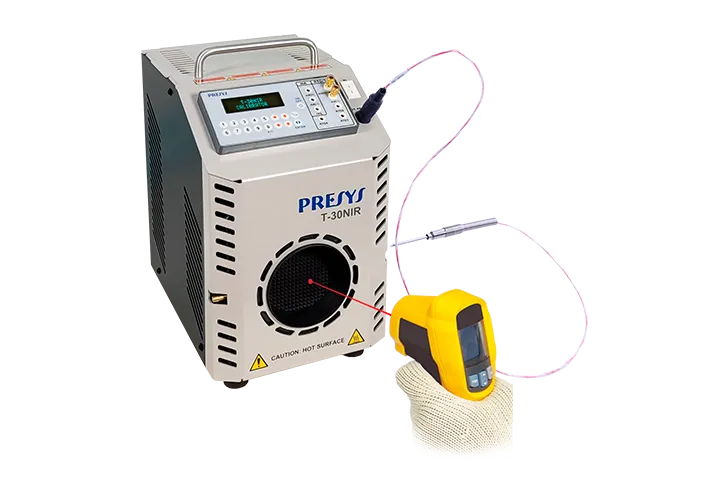

T-30NIR

Generates temperatures from -30 °C to 150 °C.
Very practical to use, facilitates calibration.
It can be used with external reference thermometer.
Includes a front cover and a connection for dry air blowing on the target edges which prevents the ice formation.
Large target of 80 millimeters.
Ideal for the test and calibration of most infrared thermometers available in the industry.
High accuracy: 0.4 °C with internal sensor and 0.1°C with external sensor.
Excellent temperature uniformity on the whole target surface.
Emissivity of 0.98 ± 0.01 for a wave-length from 8 µm to 14 µm.
Quickly reaches the selected temperatures.
Temperature stability: 0.1 °C.
Configurable readings in °C or °F.
Sakuma-Hattori Emissivity compensation.
Bluetooth Interface.

Technical Specification	T-30NIR
Operating Range ambient temperature: 23 °C	-30 °C to 150 °C
Display Accuracy internal reference external reference	± 0.4 °C ± 0.1 °C
Resolution:	± 0.01 °C
Stability:	± 0.1 °C
Target Size:	80 mm 60 mm with gas inflator device
Target Emissivity (ε):	0.98 ± 0.01
Heating Time:	18 min (25 °C to 150 °C)
Target Uniformity:	± 0.50 °C
Cooling Time:	25 min (25 °C to -30 °C)
Weight:	7.5 kg
Power Supply:	110 or 230 Vac, 50/60Hz
Electric Power:	400 W
Units / Temperature Scales:	°C or °F / IPTS-68 or ITS-90, user selectable
Display:	Graphic vacuum fluorescent with contrast adjustment
Dimensions: (HxWxD)	260 x 180 x 270 mm
