PRESYS

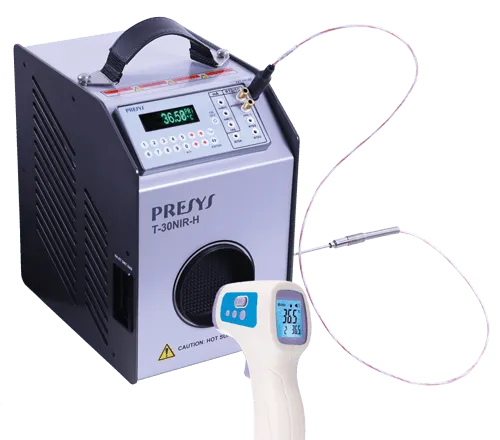

T-30NIR-H

Designed for the calibration of infrared thermometers around ambient temperatures, offering precision and Sakuma-Hattori Emissivity compensation.

Generates temperatures from 20 ºC to 45 ºC.
Facilitates calibration of infrared thermometers around ambient temperature.
It can be used with an external reference sensor (1/8” or 3mm, support of CVD parameters).
Sakuma-Hattori Emissivity compensation.
Bluetooth Interface.

Parameter	T-30NIR-H
Operating Range ambient temperature: 23 °C	20 °C to 45 °C
Accuracy internal reference with external thermometer	± 0.1 °C ± 0.05 °C
Resolution:	± 0.01 °C
Stability:	± 0.1 °C
Target Size:	80 mm
Target Emissivity (ε):	0.98 ± 0.01
Weight:	6 kg
Power Supply:	110 or 230 Vac, 50/60Hz
Electric Power:	120 W
Units / Temperature Scales:	°C or °F
Display:	Graphic vacuum fluorescent with contrast adjustment
Dimensions: (HxWxD)	260 x 180 x 270 mm
Warranty:	1 year
