PRESYS

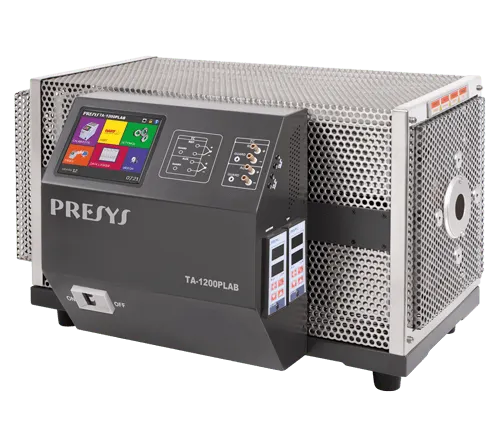

TA-1200PLAB

Best-in-class temperature stability and uniformity calibrator with 3 zones control, built-in web server, and noise reduction design. Meets the AMS2750E recommendations for advanced laboratory calibrations.

Key Features

High Performance: Operating Range 50 to 1200 ºC. Resolution of 0.01 ºC. Stability of ±0.10 ºC @ 1100 ºC.
Uniformity & Zones: 3 zones control. Radial Homogeneity: ±0.10 ºC @ 1100 ºC. Axial Homogeneity: ±0.20 ºC @ 1100 ºC (±0.3 °C Axial uniformity over 100 mm).
Calibration Excellence: Immersion of 300 mm and Measurement Zone of 100 mm. External reference thermocouple input and Deviation Function for TC test sensors to improve uncertainty of thermocouples calibrations.
Smart Connectivity: Ethernet, Wireless, USB, TCP/IP – Built-in Web Server. Build in VNC for remote access and technical support. Easy LabView interface with the WebAp.
Design & Compliance: Noise reduction design of the heater core. Meets the AMS2750E recommendations.

Download Product User Sheet (PDF)

สั่งซื้อ / สอบถาม

LINE : @thermology โทร. : 092-278-5750 (K’Gun)

Technical Specifications

Parameter	TA-1200PLAB
Operating Range	50 to 1200 °C
Resolution	0.01 °C
Stability	± 0.10 °C @ 1100 °C
Radial Homogeneity	± 0.10 °C @ 1100 °C
Axial Homogeneity	± 0.20 °C @ 1100 °C (± 0.3 °C Axial uniformity over 100 mm)
Immersion Depth	300 mm
Measurement Zone	100 mm
Control Zones	3 zones
