PRESYS

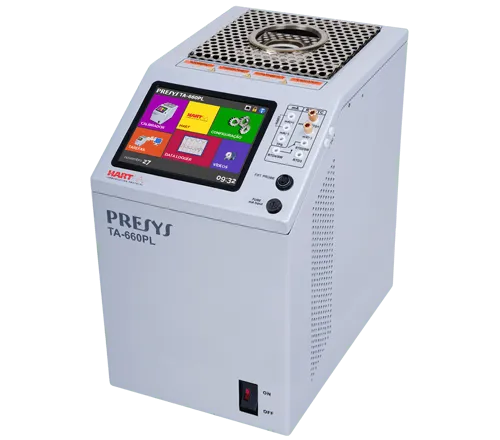

TA-660PL

Advanced temperature calibrator featuring a 5.7-inch touchscreen, built-in web server, and an independent electric signal calibrator, designed to operate up to 660 °C.

Key Features

RTD Input: Support for 2, 3 and 4 wires. Table IEC 60751, JIS or Callendar-Van Dusen user-configurable. Engineering units configurable to °C, °F and K.
Connectivity: Built in Web Server, Ethernet communication. USB port for software/firmware upgrade.
HART® Protocol: HART® Communication Protocol (optional).
Dual Functionality: The electric signal calibrator is independent from the dry block function.
Smart Display: 5.7 inches touchscreen display that eases the operation and configuration of the calibrator. Display indication when the temperature reaches the desired value.
Scaling & Power: Thermo-element reading scaled to ITS-90 or IPTS-68. Internal regulated 24 Vdc power supply for 2-wire transmitters.
Safety & Accessories: Independent circuit for over-temperature protection and safety. Insert to choose, carrying case, handles and test leads included.

Download Product User Sheet (PDF)

สั่งซื้อ / สอบถาม

LINE : @thermology โทร. : 092-278-5750 (K’Gun)

Technical Specifications

Parameter	TA-660PL
Operating Range	from ambient temperature to 660 °C (1220 °F)
Power Supply	110 Vac or 220 Vac 50/60Hz, according to order code.
Well Diameter / Depth	Ø 36 mm x 155 mm
Resolution	0.01 °C or 0.01 °F
Accuracy	± (0.1 °C + 0.1 % of reading)
Stability (after 10 minutes)	± 0.05 °C
Power Consumption	1000 W
Heating Rate	30 minutes (50 °C to 660 °C)
Cooling Rate	80 minutes (660 °C to 200 °C) 140 minutes (660 °C to 100 °C)
Dimensions (H,W,D)	315 x 200 x 305 mm
Weight	10.5 kg
Warranty	1 year
