PRESYS

TA-60NL

The TA-60NL is a high-performance Temperature Calibrator featuring all Advanced Functions and Communication features of our Advanced Series.

Key Features

Advanced Functions: All Advanced Functions and Communication features of our Advanced Series.
Data Processing: Process the ITS-90 and Callendar-Van Dusen coefficients.

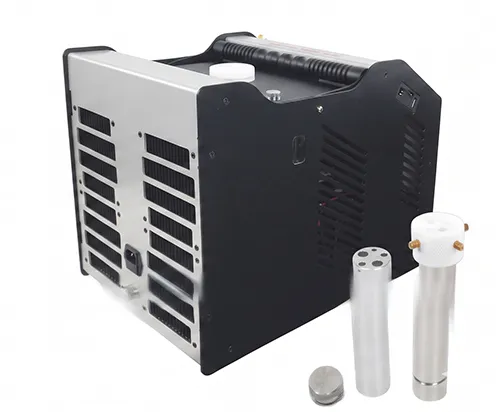

Versatile Insert: 35 mm diameter and 160 mm length Solid insert or Liquid Bath insert.
Laboratory Ready: Very Silent operation with regulated ventilation for use in laboratory.

Download Product User Sheet (PDF)

สั่งซื้อ / สอบถาม

LINE : @thermology โทร. : 092-278-5750 (K’Gun)

Technical Specifications

Parameter	TA-60NL
Operating Range	-60 °C to 140 °C ⁽¹⁾
Power Supply	115 Vac or 230 Vac 50/60 Hz, according to order code.
Well Diameter / Depth	Ø 35 mm x 160 mm
Resolution	0.01 °C (0.01 °F)
Display Accuracy	0.10 °C
Stability (after 10 min)	± 0.025 °C
Axial Uniformity (40 mm)	± 0.04 °C (full range)
Radial Uniformity	± 0.02 °C (full range)
Power Consumption	870 W (rated)
Heating Rate	30 minutes (25 °C to 140 °C)
Cooling Rate	60 minutes (25 °C to -60 °C)
Dimensions (H,W,D)	370 x 306 x 450 mm
Weight	17 kg

(1) Ambient Temperature: up to 23 °C.

Note: The times for cooling and heating rate presented refer exclusively to the use of the solid (metallic) insert. For use with stirred liquid insert the time may vary according to the fluid used and its viscosity.
